Overview

The purpose of the block and bleed manifold is to isolate or block the flow of fluid in the system, so the fluid from upstream of the manifold does not reach other components of the system that are downstream, then bleed off or vent the remaining fluid from the system on the downstream side of the manifold.

For example, a block and bleed manifold would be used to stop the flow of fluids to some component, then vent the fluid from that component’s side of the manifold, in order to effect some kind of work (maintenance/repair/replacement) on that component.

Specifications

Pressure Rating PN69 & Class 300
Materials ASTM A352 LCB, ASTM A105, ASTM A216 WCB & ASTM A351 CF8M, ASTM A182 F316 Other materials available on request to suit specific process applications.
End Connections Flanged, Screwed, Socket weld and butt weld.
Valve Bores Full and reduced bore available.
Size Range ½” to 6”
Seat Materials Virgin PTFE, 15% or 25% Glass filled PTFE, Vespel, Delrin, Acetal, UHMWPE, Fluorofil, PEEK & Metal.
Body Designs Three piece valve bodies located around a centre drain block.



Data Sheets

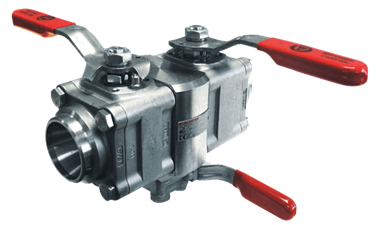

Worcester Series 22 Double Block and Bleed Ball Valve

Manufacturers

At Cambrian, we are able to offer a full range of process ball valves.  Please contact us for more details.
