Overview

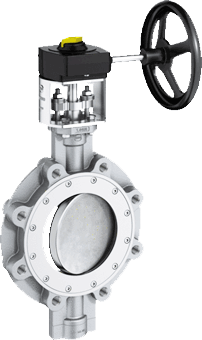

Lug type butterfly valve in double-eccentric construction. Reliable sealing even with extreme temperature and pressure conditions.
Specifications
| Size Range | 50mm – 600mm (2” – 24”) |
| Flange Accommodation | BS4504 PN10/16/25/40 ANSI B 16.5, Class 150 BS 10 Table D and E DIN 2501 PN 6/10/16 MSS SP44 Class 150 AWWA C 207 JIS B 2211-5K/10K |
| Temperature Range | –40°C to + 450°C (depending on material & pressure) |
| Pressure Rating | Maximum 40 Bar |
| Body Material | Carbon Steel 1.0619 (WCB) Stainless Steel 1.4408 (CF8M) Aluminium Bronze |
| Disc Material | Stainless Steel 1.4408 (CF8M) |
| Stem Material | Stainless Steel 1.4418 |
| Seat Material | PTFE (Reinforced) 230°C Max Inconel (Metal seal) 450°C Max Packing Material PTFE Graphite |
